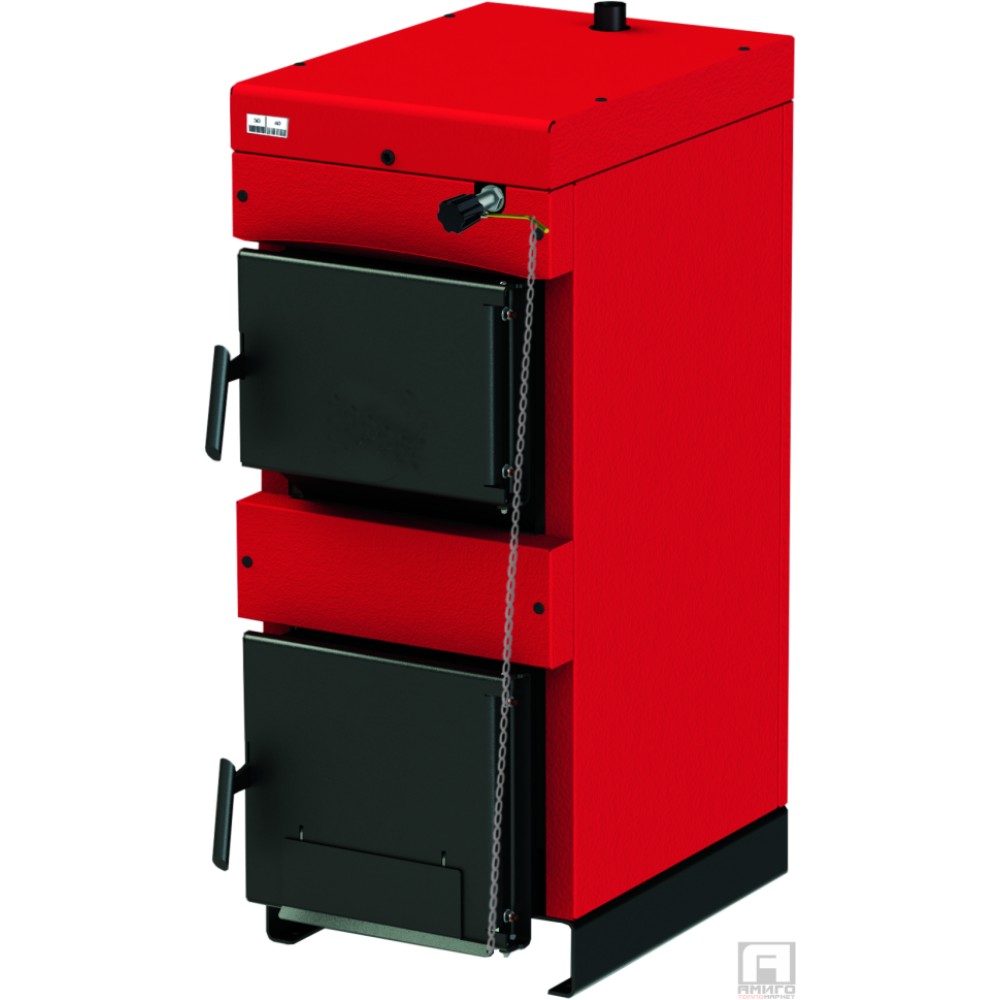

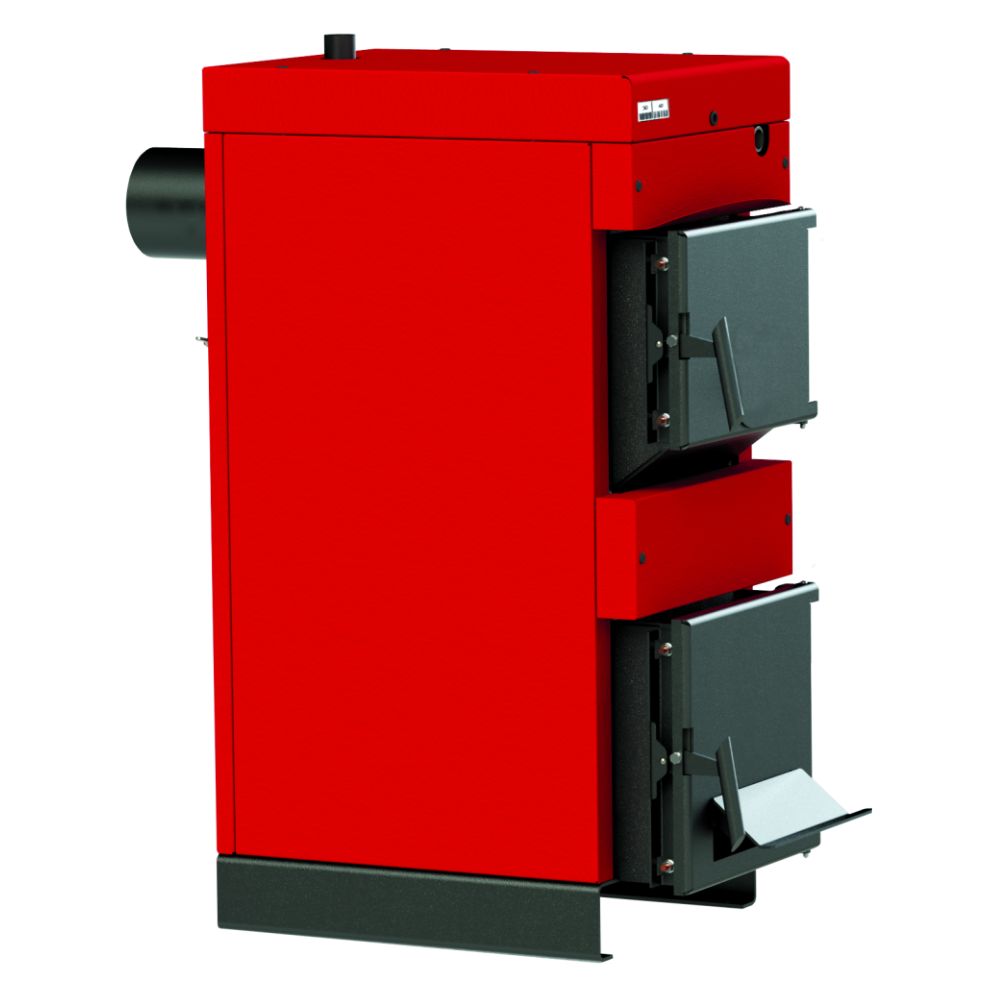

Wood stove furnace BURNiT NWB 25, 20kW

Reliable and efficient heating with Wood Stove Furnaces
Burnit NWB – 20 kW

The Burnit NWB series consists of steel hot-water Wood Stove Furnaces designed for operation in closed heating systems with forced circulation. The furnaces are engineered for efficient combustion of firewood and coal, providing stable heat output and long service life.

Thanks to the wide power range, Burnit NWB furnaces are suitable for heating single-family and multi-family houses, villas, administrative, commercial, and industrial buildings.

The series includes several models with different power outputs, allowing optimal selection according to the specific requirements of the building.

 Burnit NWB 25 – 20 kW    Burnit NWB 35 – 30 kW

 Burnit NWB 30 – 25 kW    Burnit NWB 45 – 40 kW

Main advantages of BURNiT NWB

Robust steel construction

Ensures long service life and high resistance to thermal and mechanical stress.

Optimized heat exchange

The water jacket fully surrounds the combustion chamber, ensuring efficient heat absorption and even heating.

Convenient loading

The large door and spacious combustion chamber allow easy loading of firewood and coal.

Mechanical draft control

Precise control of the combustion process via a thermostatic regulator, ensuring economical and stable operation.

Fuel flexibility

The furnace operates with various types of solid fuel and can optionally be equipped with an additional burner.

Suitable for medium and large heating systems

An ideal solution for heating small and medium-sized homes, as well as larger commercial and industrial facilities.

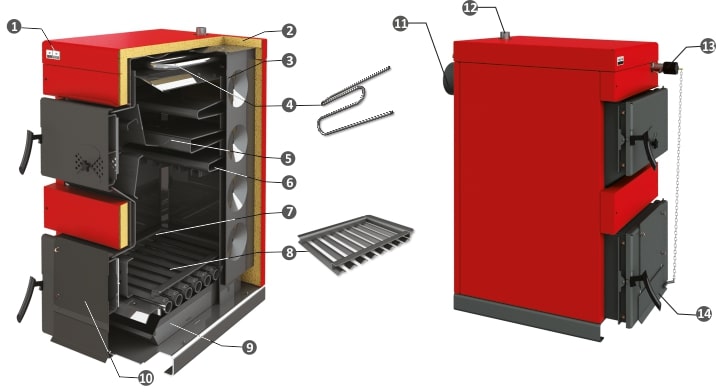

Structural components

1 – Temperature indicator
2 – Casing
3 – High-efficiency insulation
4 – Safety heat exchanger /WBS model only/
5 – Three-pass flue gas path
6 – Water jacket
7 – Combustion chamber
8 – Metal grate
9 – Ash and soot container
10 – Burner flange (optional)
11 – Chimney
12 – Hot water outlet
13 – Thermostatic draft regulator
14 – Air inlet flap
